Mandrinado fino excéntrico fijo
Fixed eccentric fine boring is a precision machining process used to accurately enlarge or refine existing holes in a workpiece, but with the added aspect of eccentricity. As the professional manufacturer, we would like to provide you Fixed Eccentric Fine Boring. And we will offer you the best after-sale service and timely delivery.
Enviar Consulta
Descripción del Producto
La perforación fina excéntrica fija se usa comúnmente en aplicaciones donde:
Los componentes deben tener orificios no concéntricos para propósitos específicos, como crear orificios desplazados para piezas giratorias o para componentes que requieren excentricidad controlada.
La alta precisión es esencial, como en las industrias aeroespacial o médica, donde las tolerancias estrictas son cruciales para el correcto funcionamiento del producto final.
Es necesario lograr dimensiones precisas y excentricidad.
This machining process demands careful setup and precision in tool positioning and cutting parameters to achieve the desired eccentricity while maintaining the required accuracy. It's important to consider the specific requirements of your project and possibly consult with machining experts to ensure successful execution.
Especificación de mandrinado fino excéntrico fijo

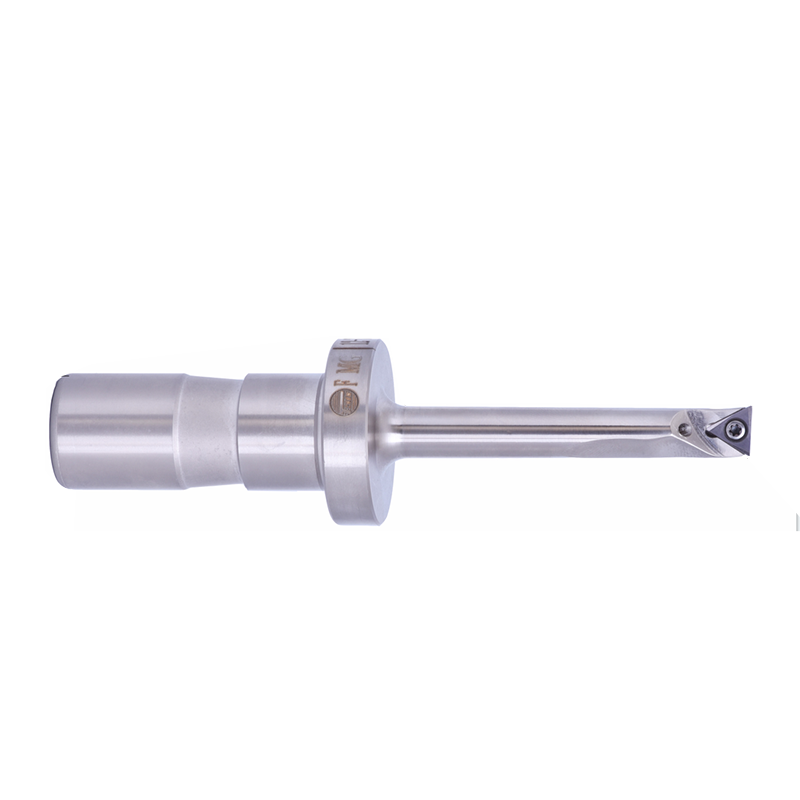

| Poste de mandrinado de precisión fijo | |||||
| modelo | tamaño | ||||
| Diámetro D | effective lengthL1 | rango ajustable | meridiano peduncular | Sábanas ajustadas | |
| MG10-55La-PH | 10 | 55 | ±0,4 | TZ-40 | TPGH080202 |
| MG11-65La-PH | 11 | 65 | ±0,4 | TZ-40 | TPGH080202 |
| MG12-73Lr-PH | 12 | 73 | ±0,4 | TZ-40 | TPGH110302L |
| MG15-85Lr-PH | 15 | 85 | ±0,4 | TZ-40 | TPGH110302L |
| MG16-85Lr-PH | 16 | 85 | ±0,4 | TZ-40 | TPGH110302L |
| MG20-103Lr-PH | 20 | 103 | ±0,4 | TZ-40 | TPGH110302L |
| MG21-100La-PH | 21 | 100 | ±0,4 | TZ-40 | TPGH110302L |
| MG23-100La-PH | 23 | 100 | ±0,4 | TZ-40 | TPGH110302L |
| MG24-110La-PH | 24 | 110 | ±0,4 | TZ-40 | TPGH110302L |
| MG25-125Lr-PH | 25 | 125 | ±0,4 | TZ-40 | TPGH110302L |
| MG26-125La-PH | 26 | 125 | ±0,4 | TZ-40 | TPGH110302L |
| MG27-125La-PH | 27 | 125 | ±0,4 | TZ-40 | TPGH110302L |
| MG28-125La-PH | 28 | 125 | ±0,4 | TZ-40 | TPGH110302L |
| MG29-130La-PH | 29 | 130 | ±0,4 | TZ-40 | TPGH110302L |
| MG30-135Lr-PH | 30 | 135 | ±0,4 | TZ-40 | TPGH110302L |
| MG31-145La-PH | 31 | 145 | ±0,4 | TZ-40 | TPGH110302L |
| MG32-145La-PH | 32 | 145 | ±0,4 | TZ-40 | TPGH110302L |
| MG34-145La-PH | 34 | 145 | ±0,4 | TZ-40 | TPGH110302L |

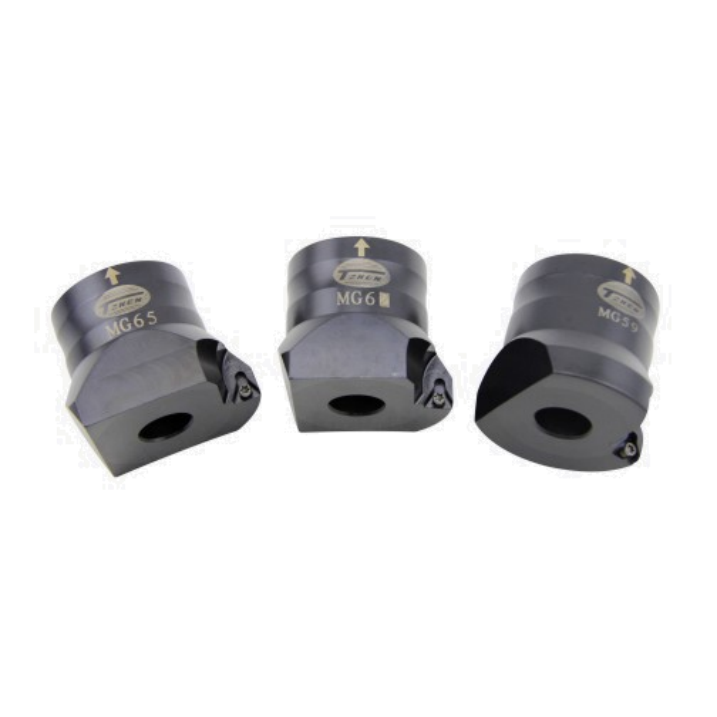

| ø35-ø100 Cabezal de mandrinado de precisión fijo | |||||
| modelo | tamaño | ||||
| Diámetro D | effective lengthL1 | rango ajustable | meridiano peduncular | Sábanas ajustadas | |
| MG35*40L | 35 | 50 | ±0,4 | TZ-33 | TPGH080202 |
| MG36*40L | 36 | 50 | ±0,4 | TZ-33 | TPGH080202 |
| MG37*40L | 37 | 50 | ±0,4 | TZ-33 | TPGH110302L |
| MG38*40L | 38 | 38 | ±0,4 | TZ-33 | TPGH110302L |
| MG39*40L | 39 | 50 | ±0,4 | TZ-33 | TPGH110302L |
| MG40*50L | 40 | 50 | ±0,4 | TZ-38 | TPGH110302L |
| MG41*50L | 41 | 50 | ±0,4 | TZ-38 | TPGH110302L |
| MG42*50L | 42 | 50 | ±0,4 | TZ-38 | TPGH110302L |
| MG43*50L | 43 | 50 | ±0,4 | TZ-38 | TPGH110302L |
| MG44*50L | 44 | 50 | ±0,4 | TZ-38 | TPGH110302L |
| MG45*50L | 45 | 50 | ±0,4 | TZ-38 | TPGH110302L |
| MG46*50L | 46 | 50 | ±0,4 | TZ-38 | TPGH110302L |
| MG47*50L | 47 | 50 | ±0,4 | TZ-38 | TPGH110302L |
| MG48*50L | 48 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG49*50L | 49 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG50*50L | 50 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG51*50L | 51 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG52*50L | 52 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG53*50L | 53 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG54*50L | 54 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG55*50L | 55 | 48 | ±0,4 | TZ-46 | TPGH110302L |
| MG56*50L | 56 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG57*50L | 57 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG58*50L | 58 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG59*50L | 59 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG60*50L | 60 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG61*50L | 61 | 50 | ±0,4 | TZ-46 | TPGH110302L |
| MG62*50L | 62 | 75 | ±0,4 | TZ-46 | TPGH110302L |
| MG63*50L | 63 | 75 | ±0,4 | TZ-46 | TPGH110302L |
| MG64*50L | 64 | 75 | ±0,4 | TZ-46 | TPGH110302L |
| MG65*50L | 65 | 75 | ±0,4 | TZ-46 | TPGH110302L |
| MG66*50L | 66 | 75 | ±0,4 | TZ-46 | TPGH110302L |
| MG67*50L | 67 | 75 | ±0,4 | TZ-46 | TPGH110302L |
| MG68*50L | 68 | 75 | ±0,4 | TZ-46 | TPGH110302L |
| MG69*50L | 69 | 75 | ±0,4 | TZ-46 | TPGH110302L |
| MG70*60L | 70 | 60 | ±0,4 | TZ-68 | TPGH110302L |
| MG71*60L | 71 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG72*60L | 72 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG73*60L | 73 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG74*60L | 74 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG75*60L | 75 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG76*60L | 76 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG77*60L | 77 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG78*60L | 78 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG79*60L | 79 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG80*60L | 80 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG81*60L | 81 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG82*60L | 82 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG83*60L | 83 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG84-60La | 84 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG85*60L | 85 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG86*60L | 86 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG87*60L | 87 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG88*60L | 88 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG89*60L | 89 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG90*60L | 90 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG91*60L | 91 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG92*60L | 92 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG93*60L | 93 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG94*60L | 94 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG95*60L | 95 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG96*60L | 96 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG97*60L | 97 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG98*60L | 98 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG99*60L | 99 | 75 | ±0,4 | TZ-68 | TPGH110302L |
| MG100*60L | 100 | 75 | ±0,4 | TZ-68 | TPGH110302L |
Etiquetas calientes: Mandrinado fino excéntrico fijo, fabricantes, proveedores, China, fábrica, personalizado, calidad
