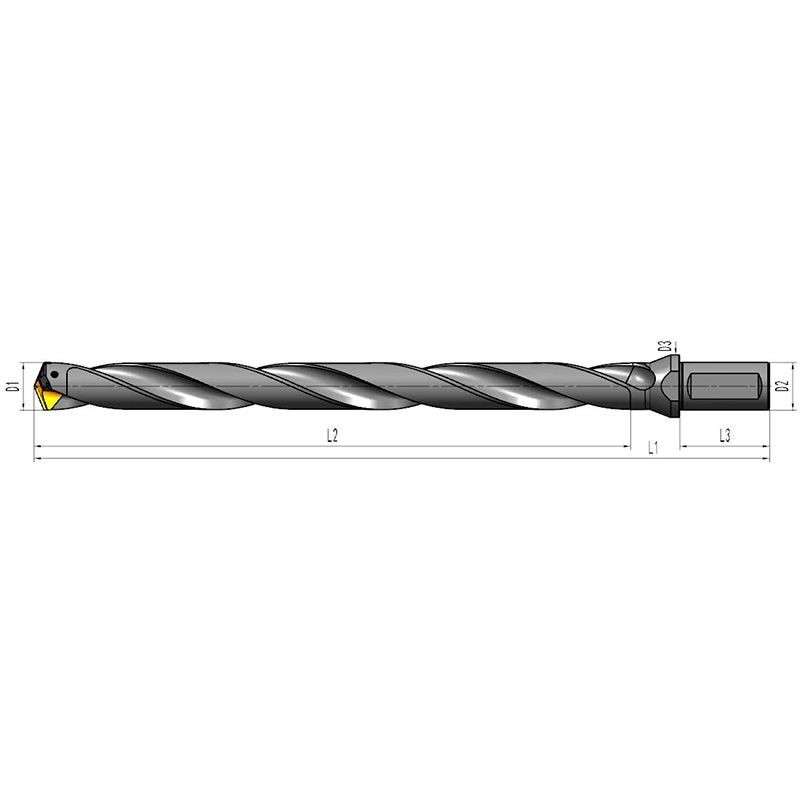

specifications | Rango de diámetro de hoja ajustable D1 |
Tamaño del mango del cuchillo | anexo | |||||
L1 | L2 | L3 | D2 | D3 | tornillo | llave inglesa | ||
DTZ-10/1049-12D-C16 | 10.00~10.49 | 191 | 127 | 48 | 16 | 24 | M2.0x9.5 | 6IP |
DTZ-10/1099-12D-C16 | 10.00~10.99 | 191 | 127 | 48 | 16 | 24 | ||
DTZ-11/1149-12D-C16 | 11.00~11.49 | 203 | 139 | 48 | 16 | 24 | ||
DTZ-11/1199-12D-C16 | 11.00~11.99 | 203 | 139 | 48 | 16 | 24 | ||
DTZ-11/1249-12D-C16 | 12.00~12.49 | 216 | 151 | 48 | 16 | 24 | M2.5x10.9 | 7IP |
DTZ-12/1299-12D-C16 | 12.00~12.99 | 216 | 151 | 48 | 16 | 24 | ||
DTZ-13/1349-12D-C16 | 13.00~13.49 | 228 | 163 | 48 | 16 | 24 | ||
DTZ-13/1399-12D-C16 | 13.00~13.99 | 228 | 163 | 48 | 16 | 24 | ||
DTZ-14/1449-12D-C20 | 14.00~14.49 | 246 | 175 | 50 | 20 | 28 | M3.0x12.8 | 8IP |
DTZ-14/1499-12D-C20 | 14.00~14.99 | 246 | 175 | 50 | 20 | 28 | ||
DTZ-15/1549-12D-C20 | 15.00~15.49 | 258 | 187 | 50 | 20 | 28 | ||
DTZ-15/1599-12D-C20 | 15.00~15.99 | 258 | 187 | 50 | 20 | 28 | ||
DTZ-16/1649-12D-C20 | 16.00~16.49 | 271 | 200 | 50 | 20 | 28 | ||
DTZ-16/1699-12D-C20 | 16.00~16.99 | 271 | 200 | 50 | 20 | 28 | ||
DTZ-17/1749-12D-C20 | 17.00~17.49 | 284 | 213 | 50 | 20 | 28 | M3.0x14.7 | |
DTZ-17/1799-12D-C20 | 17.00~17.99 | 284 | 213 | 50 | 20 | 28 | ||
DTZ-18/1849-12D-C20 | 18.00~18.49 | 298 | 225 | 50 | 20 | 28 | M4.0x16.7 | 15IP |
DTZ-18/1899-12D-C20 | 18.00~18.99 | 298 | 225 | 50 | 20 | 28 | ||
DTZ-19/1949-12D-C20 | 19.00~19.49 | 311 | 238 | 50 | 20 | 28 | ||
DTZ-19/1999-12D-C20 | 19.00~19.99 | 311 | 238 | 50 | 20 | 28 | ||
DTZ-20/2099-12D-C25 | 20,00~20,99 | 334 | 252 | 56 | 25 | 35 | ||
DTZ-21/2199-12D-C25 | 21.00~21.99 | 346 | 264 | 56 | 25 | 35 | ||
DTZ-22/2299-12D-C25 | 22.00~22.99 | 359 | 277 | 56 | 25 | 35 | ||
DTZ-23/2399-12D-C25 | 23.00~23.99 | 371 | 289 | 56 | 25 | 35 | ||
DTZ-24/2499-12D-C25 | 24.00~24.99 | 388 | 302 | 56 | 25 | 35 | M5.0x20.6 | 20IP |
DTZ-25/2599-12D-C32 | 25.00~25.99 | 407 | 314 | 60 | 32 | 42 | M5.0x22.6 | |
DTZ-26/2699-12D-C32 | 26,00~26,99 | 419 | 326 | 60 | 32 | 42 | ||
DTZ-27/2799-12D-C32 | 27,00~27,99 | 432 | 339 | 60 | 32 | 42 | ||
DTZ-28/2899-12D-C32 | 28,00~28,99 | 444 | 351 | 60 | 32 | 42 | ||
DTZ-29/2999-12D-C32 | 29.00~29.99 | 457 | 364 | 60 | 32 | 42 | ||
DTZ-30/3099-12D-C32 | 30,00~30,99 | 469 | 376 | 60 | 32 | 42 |
