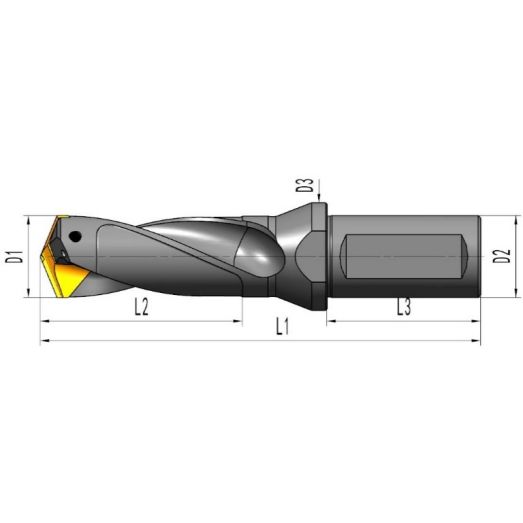

especificaciones | Rango de diámetro de hoja ajustable D1 |
Tamaño del mango del cuchillo | anexo | |||||
L1 | L2 | L3 | D2 | D3 | tornillo | llave inglesa | ||
DTZ-10/1049-2D-C16 | 10.00~10.49 | 91 | 27 | 48 | 16 | 24 | M2.0x9.5 | 6IP |
DTZ-10/1099-2D-C16 | 10.00~10.99 | 91 | 27 | 48 | 16 | 24 | ||
DTZ-11/1149-2D-C16 | 11.00~11.49 | 93 | 29 | 48 | 16 | 24 | ||
DTZ-11/1199-2D-C16 | 11.00~11.99 | 93 | 29 | 48 | 16 | 24 | ||
DTZ-11/1249-2D-C16 | 12.00~12.49 | 96 | 31 | 48 | 16 | 24 | M2.5x10.9 | 7IP |
DTZ-12/1299-2D-C16 | 12.00~12.99 | 96 | 31 | 48 | 16 | 24 | ||
DTZ-13/1349-2D-C16 | 13.00~13.49 | 98 | 33 | 48 | 16 | 24 | ||
DTZ-13/1399-2D-C16 | 13.00~13.99 | 98 | 33 | 48 | 16 | 24 | ||
DTZ-14/1449-2D-C20 | 14.00~14.49 | 106 | 35 | 50 | 20 | 28 | M3.0x12.8 | 8IP |
DTZ-14/1499-2D-C20 | 14.00~14.99 | 106 | 35 | 50 | 20 | 28 | ||
DTZ-15/1549-2D-C20 | 15.00~15.49 | 108 | 37 | 50 | 20 | 28 | ||
DTZ-15/1599-2D-C20 | 15.00~15.99 | 108 | 37 | 50 | 20 | 28 | ||
DTZ-16/1649-2D-C20 | 16.00~16.49 | 111 | 40 | 50 | 20 | 28 | ||
DTZ-16/1699-2D-C20 | 16.00~16.99 | 111 | 40 | 50 | 20 | 28 | ||
DTZ-17/1749-2D-C20 | 17.00~17.49 | 114 | 43 | 50 | 20 | 28 | M3.0x14.7 | |
DTZ-17/1799-2D-C20 | 17.00~17.99 | 114 | 43 | 50 | 20 | 28 | ||
DTZ-18/1849-2D-C20 | 18.00~18.49 | 118 | 45 | 50 | 20 | 28 | M4.0x16.7 | 15PI |
DTZ-18/1899-2D-C20 | 18.00~18.99 | 118 | 45 | 50 | 20 | 28 | ||
DTZ-19/1949-2D-C20 | 19.00~19.49 | 121 | 48 | 50 | 20 | 28 | ||
DTZ-19/1999-2D-C20 | 19.00~19.99 | 121 | 48 | 50 | 20 | 28 | ||
DTZ-20/2099-2D-C25 | 20,00~20,99 | 134 | 52 | 56 | 25 | 35 | ||
DTZ-21/2199-2D-C25 | 21.00~21.99 | 136 | 54 | 56 | 25 | 35 | ||
DTZ-22/2299-2D-C25 | 22.00~22.99 | 139 | 57 | 56 | 25 | 35 | ||
DTZ-23/2399-2D-C25 | 23.00~23.99 | 141 | 59 | 56 | 25 | 35 | ||
DTZ-24/2499-2D-C25 | 24.00~24.99 | 148 | 62 | 56 | 25 | 35 | M5.0x20.6 | 20IP |
DTZ-25/2599-2D-C32 | 25,00~25,99 | 157 | 64 | 60 | 32 | 42 | M5.0x22.6 | |
DTZ-26/2699-2D-C32 | 26,00~26,99 | 159 | 66 | 60 | 32 | 42 | ||
DTZ-27/2799-2D-C32 | 27,00~27,99 | 162 | 69 | 60 | 32 | 42 | ||
DTZ-28/2899-2D-C32 | 28,00~28,99 | 164 | 71 | 60 | 32 | 42 | ||
DTZ-29/2999-2D-C32 | 29.00~29.99 | 167 | 74 | 60 | 32 | 42 | ||
DTZ-30/3099-2D-C32 | 30,00~30,99 | 169 | 76 | 60 | 32 | 42 |
