Las brocas de carburo reemplazables, también conocidas como brocas de carburo indexables o brocas de carburo modulares, son herramientas de corte que se utilizan para perforar agujeros en diversos materiales. Están diseñadas con un inserto de carburo reemplazable (la parte cortante de la broca), que ofrece varios beneficios sobre las brocas de carburo sólido tradicionales. Aquí hay más información sobre estas brocas:
Diseño modular: Las brocas reemplazables de carburo constan de un cuerpo de broca y un inserto de carburo separado. El inserto es la parte cortante del taladro y se puede reemplazar cuando se desafila o se desgasta. Este diseño modular permite un mantenimiento rentable y una vida útil mejorada de la herramienta.
Insertos de carburo: los insertos de carburo utilizados en estas brocas están hechos de una combinación de partículas de carburo de tungsteno y un material aglutinante, a menudo cobalto. Este material de carburo es extremadamente duro y resistente al desgaste, lo que lo hace muy adecuado para perforar materiales resistentes como metal, acero endurecido y aleaciones.
Versatility: These drill bits are versatile and can be used in a wide range of applications and industries. They are suitable for drilling holes in materials such as steel, stainless steel, cast iron, aluminum, and more.
Eficiencia: Los insertos de carburo reemplazables permiten una evacuación eficiente de la viruta, fuerzas de corte reducidas y velocidades de corte más altas en comparación con otros tipos de brocas. Esto da como resultado operaciones de perforación más rápidas y productivas.
Refrigerante y lubricación: Dependiendo del material que se esté perforando y de la geometría específica del inserto, es posible que se necesite refrigerante o lubricación para garantizar un rendimiento y una vida útil óptimos de la herramienta.
Size and Geometry: Carbide replaceable drill bits come in various sizes and geometries to accommodate different hole diameters and drilling requirements.
Estabilidad de mecanizado: el diseño modular de estas brocas a menudo conduce a una mayor estabilidad durante las operaciones de perforación, lo que reduce las vibraciones y promueve la precisión.
Rentabilidad: si bien el costo inicial de estas brocas puede ser mayor que el de las brocas de carburo sólido tradicionales, sus insertos reemplazables pueden extender significativamente la vida útil de la herramienta, haciéndolas rentables a largo plazo.
When using carbide replaceable drill bits, it's essential to follow the manufacturer's recommendations for insert replacement, cutting speeds, feed rates, and coolant/lubrication practices to achieve the best results. Different manufacturers might offer various insert grades and geometries tailored for specific materials and applications. Always choose the appropriate insert type based on your drilling needs and the material you're working with.
Brocas reemplazables de carburo

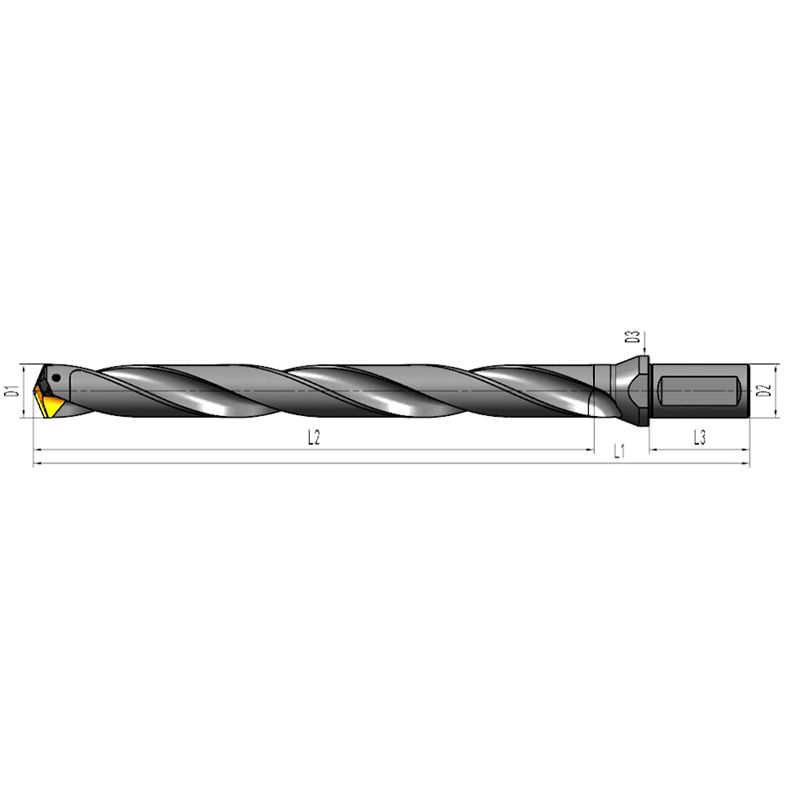

especificaciones |
Rango de diámetro de hoja ajustable D1 |
Tamaño del mango del cuchillo |
anexo |
L1 |
L2 |
L3 |
D2 |
D3
|
tornillo |
llave inglesa |
DTZ-10/1049-10D-C16 |
10.00~10.49 |
171
|
107
|
48
|
16
|
24
|
M2.0x9.5 |
6IP
|
DTZ-10/1099-10D-C16
|
10.00~10.99 |
171
|
107
|
48
|
16
|
24
|
DTZ-11/1149-10D-C16 |
11.00~11.49 |
181
|
117
|
48
|
16
|
24
|
DTZ-11/1199-10D-C16 |
11.00~11.99
|
181
|
117
|
48
|
16
|
24
|
DTZ-11/1249-10D-C16 |
12.00~12.49 |
192
|
127
|
48
|
16
|
24
|
M2.5x10.9 |
7IP |
DTZ-12/1299-10D-C16 |
12.00~12.99 |
192
|
127
|
48
|
16
|
24
|
DTZ-13/1349-10D-C16 |
13.00~13.49 |
202
|
137
|
48
|
16
|
24
|
DTZ-13/1399-10D-C16 |
13.00~13.99 |
202
|
137
|
48
|
16
|
24
|
DTZ-14/1449-10D-C20 |
14.00~14.49
|
218
|
147
|
50
|
20
|
28
|
M3.0x12.8 |
8IP |
DTZ-14/1499-10D-C20
|
14.00~14.99 |
218
|
147
|
50
|
20
|
28
|
DTZ-15/1549-10D-C20 |
15.00~15.49 |
228
|
157
|
50
|
20
|
28
|
DTZ-15/1599-10D-C20 |
15.00~15.99 |
228
|
157
|
50
|
20
|
28
|
DTZ-16/1649-10D-C20 |
16.00~16.49 |
239
|
168
|
50
|
20
|
28
|
DTZ-16/1699-10D-C20
|
16.00~16.99 |
239
|
168
|
50
|
20
|
28
|
DTZ-17/1749-10D-C20 |
17.00~17.49 |
250
|
179
|
50
|
20
|
28
|
M3.0x14.7 |
DTZ-17/1799-10D-C20 |
17.00~17.99 |
250
|
179
|
50
|
20
|
28
|
DTZ-18/1849-10D-C20 |
18.00~18.49 |
262
|
189
|
50
|
20
|
28
|
M4.0x16.7 |
15PI |
DTZ-18/1899-10D-C20 |
18.00~18.99 |
262
|
189
|
50
|
20
|
28
|
DTZ-19/1949-10D-C20 |
19.00~19.49 |
273
|
200
|
50
|
20
|
28
|
DTZ-19/1999-10D-C20 |
19.00~19.99 |
273
|
200
|
50
|
20
|
28
|
DTZ-20/2099-10D-C25 |
20.00~20.99
|
294
|
212
|
56
|
25
|
35
|
DTZ-21/2199-10D-C25 |
21.00~21.99 |
304
|
222
|
56
|
25
|
35
|
DTZ-22/2299-10D-C25 |
22.00~22.99 |
315
|
233
|
56
|
25
|
35
|
DTZ-23/2399-10D-C25 |
23.00~23.99
|
325
|
243
|
56
|
25
|
35
|
DTZ-24/2499-10D-C25 |
24.00~24.99 |
340
|
254
|
56
|
25
|
35
|
M5.0x20.6 |
20IP |
DTZ-25/2599-10D-C32 |
25,00~25,99 |
357
|
264
|
60
|
32
|
42
|
M5.0x22.6 |
DTZ-26/2699-10D-C32 |
26.00~26.99
|
367
|
274
|
60
|
32
|
42
|
DTZ-27/2799-10D-C32 |
27.00~27.99
|
378
|
285
|
60
|
32
|
42
|
DTZ-28/2899-10D-C32 |
28,00~28,99 |
388
|
295
|
60
|
32
|
42
|
DTZ-29/2999-10D-C32 |
29.00~29.99 |
399
|
306
|
60
|
32
|
42
|
DTZ-30/3099-10D-C32 |
30,00~30,99 |
409
|
316
|
60
|
32
|
42
|
